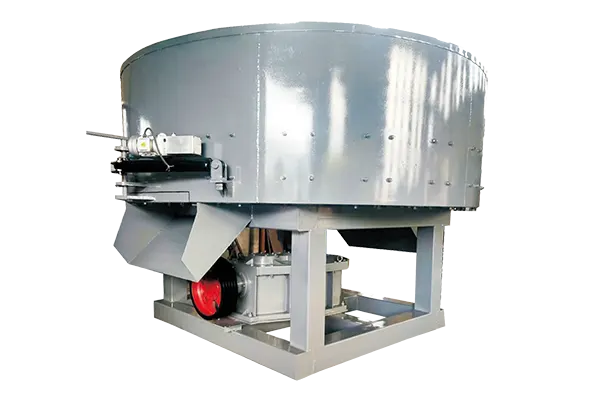

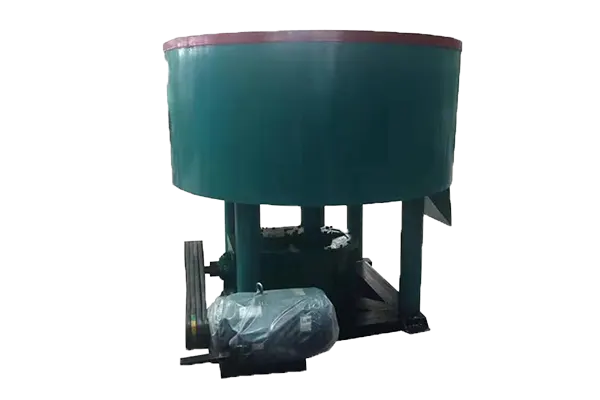

The wheel mill mixer is extensively utilized in industries such as foundry, refractory materials, chemical engineering, and metallurgy. It is also suitable for processing various materials including dry, semi-dry, wet, plastic, and clay-like substances. This mixer offers high production efficiency, superior grinding and mixing quality, prevents agglomeration, allows adjustable wheel pressure, minimizes particle breakage, ensures easy operation and maintenance, features low power consumption, and delivers high economic benefits. Additionally, the entire machine can be hoisted for installation, making it an ideal upgrade and replacement product for grinding and mixing equipment across multiple industrial sectors.
Working Principle:
In the mixing and rolling wheel mill, the motor drives the main body box mounted on the vertical shaft. The main body box is equipped with mixing paddles at diagonal positions and a pair of rolling wheels. The mixing paddles revolve clockwise around the vertical shaft at a certain speed, simultaneously driving the rolling wheel shafts, causing each rolling wheel to rotate around its own axis at a certain speed. The two mixing paddles (one moving along the inner circle and the other along the outer circle, ensuring thorough and uniform mixing of the material in the container without leaving any gaps) and the rolling wheels continuously tumble, crush, and mix the material. This design features fast, uniform mixing without clumping, no dead corners, and low energy consumption.
